Feature:
1. Long Durability: The foot pressure sensor is composed of polyester film, high conductivity material, and nanoscale sensing material, which has superior pressure sensing, fast response, and long service life, as well as well comprehensive mechanical performance
2. Reasonable Layout: The bottom is flexible film and a conductive layer consistent with it, the top layer is flexible film and pressure sensitive material; The bottom and top layers are bonded by double sided tape, the sensing areas of the upper and lower layer are isolated
3. 16 Sensing Areas: Featuring 16 independent sensing areas, when the sensing area is pressurized, the wires separated from the bottom layer are opened, and the output resistive value of the sensing area changes with pressure
4. Comfortable Design: The thin film foot pressure sensor has IP67 water and dust proof rating, no electromagnetic interference and electrostatic discharge; Human foot mechanics design, comfortable and flexible, you can use it with confidence
5. Wide Application: This pressure sensor insole is suitable for various foot sizes and has long lasting performance. It is widely suitable for step counting, stride, gait, motion detection, foot force analysis, and fall prevention warning application
Specification:
Item Type: Foot Pressure Sensor
Sensing Points: 16
Size: Approx. 253 x 76mm 10 x 3in
Applicable Sizes: 36, 38, 40, 41, 42, 44
Thickness: 0.4mm
Type: Thin Sheet, Flexible
Trigger Force: Approx. 500g 1.1lb
Pressure Range: Approx. 0.510kg 1.122lb, Soft Pressure Head
Pressure Action Method: Soft Touch Press
Not Activated Resistive Value: Greater than 10M Ohm
Activation Time: Less than 10mS
Using Temperature: 20 celsius 65 celsius
Durability: Over 1 million times (normal walking, regular use)
Resistive Range: About 50K150K Ohm
Response Time: <10ms
Water Proof: IP67
Dust Proof: IP67
Electromagnetic Interference EMI: None
Electrostatic Discharge EDS: None
Product Description:

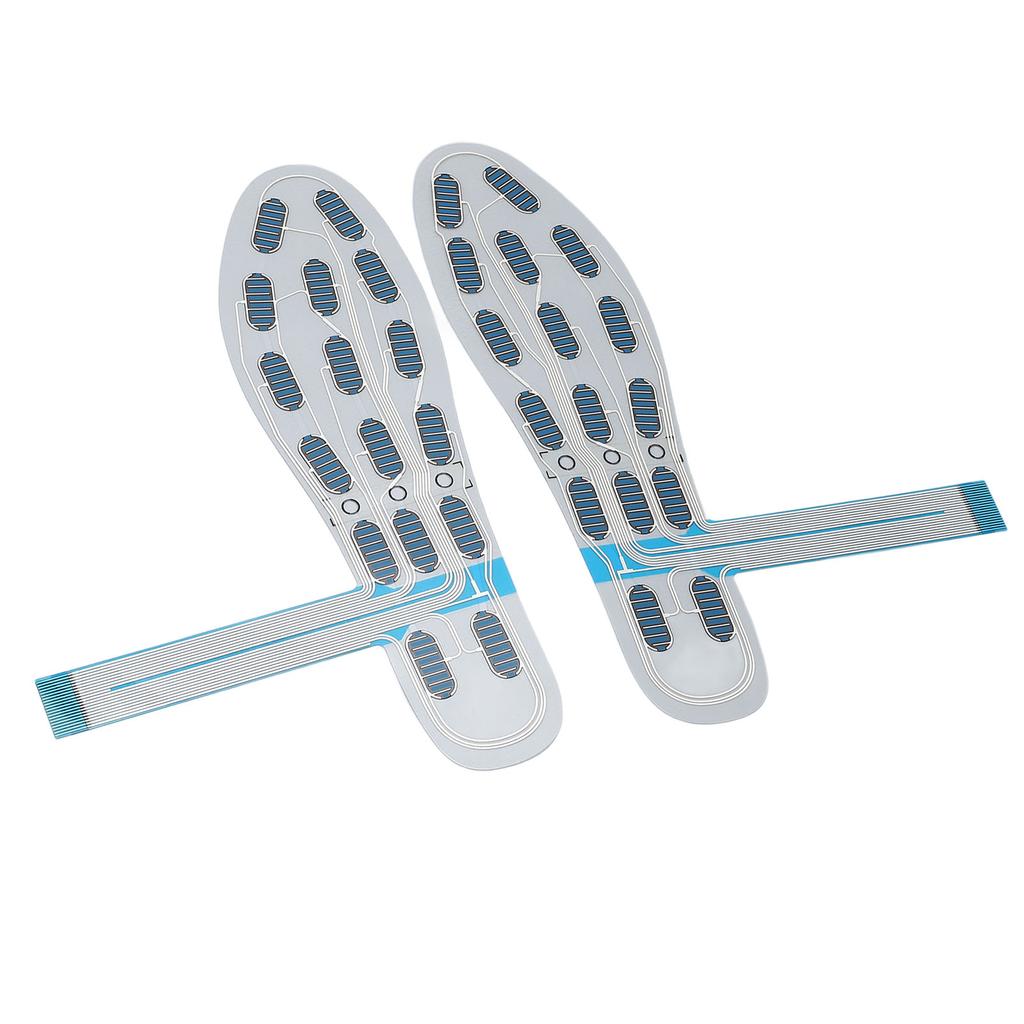

The flexible film foot pressure sensor has 16 independent sensing zones, and the output resistive value of the sensing zone changes with the change of external pressure.
Reasonable sensing area layout, a total of 20 interface s, using 1mm spacing, 10Pin, 0.3mm thickness plug interface. Among them, 2 are public lines, 16 are independent s in the sensing area, and 2 are vacant lines..
Package List:
1 Pair Pressure Sensor (Left and Right Foot)Long Durability: The foot pressure sensor is composed of polyester film, high conductivity material, and nanoscale sensing material, which has superior pressure sensing, fast response, and long service life, as well as well comprehensive mechanical perfo
Reasonable Layout: The bottom is flexible film and a conductive layer consistent with it, the top layer is flexible film and pressure sensitive material; The bottom and top layers are bonded by double sided tape, the sensing areas of the upper and lower
16 Sensing Areas: Featuring 16 independent sensing areas, when the sensing area is pressurized, the wires separated from the bottom layer are opened, and the output resistive value of the sensing area changes with pressure
Comfortable Design: The thin film foot pressure sensor has IP67 water and dust proof rating, no electromagnetic interference and electrostatic discharge; Human foot mechanics design, comfortable and flexible, you can use it with confidence
Wide Application: This pressure sensor insole is suitable for various foot sizes and has long lasting performance. It is widely suitable for step counting, stride, gait, motion detection, foot force analysis, and fall prevention warning application
