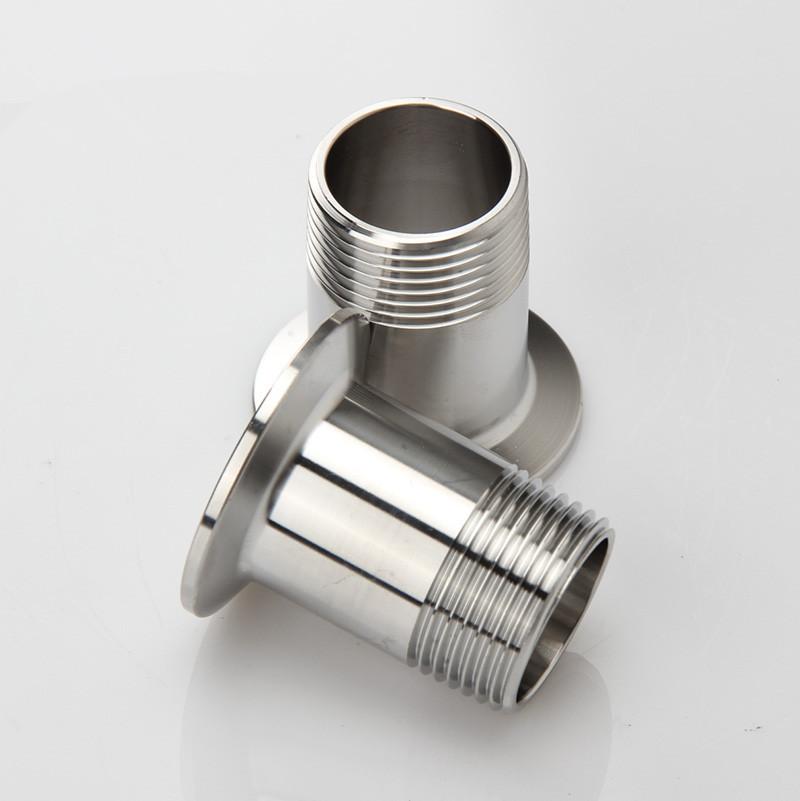

1/2" - 2" (DN15-DN50) Adapters for heater Sanitary Stainless Steel SS304 Male Threaded Ferrule Pipe Fittings Tri-Clamp

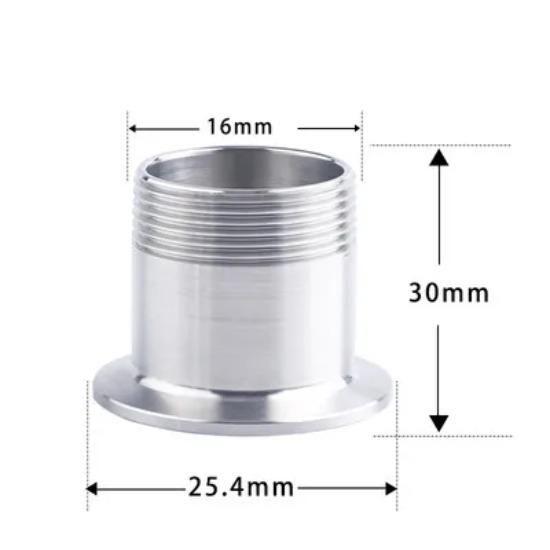

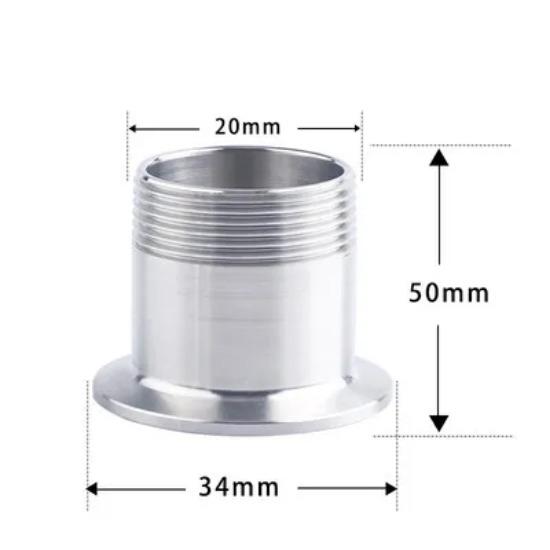

Manufacture Country: China Connection : Male Head Code : 1 Technics : Forged Shape : Equal Type : Coupling Material : STAINLESS STEEL Certification : none Model Number : SFTF Head Code : round Connection : Tri Clamp & Female Threaded Female Thread Size : DN15 DN20 DN25 DN40 DN50 Sanitary Female Threaded Ferrule Pipe Fitting Tri Clamp Type Stainless Steel SS304 BSP (British Standard Pipe) Thread Size Information BSP (British Standard Pipe) size was originally based on the inner diameter measured in inches of a steel tube for which the male thread was intended. This often causes confusion ,as people think the BSP size refers to the outside diameter of the male thread . Example:so if i want to fit a thread measuring 1"you would order 3/4"BSP -- see the chart below BSP Male thread Out side Diamter Normal Size Inch mm 1/8 DN6 0.38" 9.7 1/4 DN8 0.51" 13.2 3/8 DN10 0.65" 16.7 1/2 DN15 0.82" 21 3/4 DN20 1.04" 26.5 1 DN25 1.31" 33.2 1-1/4 DN32 1.65" 41.9 1-1/2 DN40 1.88" 47.8 2 DN50 2.35" 59.6 2-1/2 DN65 2.96" 75.2 3 DN80 3.46" 87.9 4 DN100 4.45" 113 Features: Brand NewBody material:Stainless Steel 304High Pressure DurablePipe Thread:BSPTPackage Includes:1 Pc Sanitary Female Threaded Ferrule Pipe Fitting Inch Female Ferrule Size(mm) Fit gasket Fits Tri-clamp 1/2 DN15 50.5 19 19-38 3/4 DN20 50.5 25 19-38 1 DN25 50.5 32 19-38 1-1/4 DN32 50.5 45 19-38 1/1/2 DN40 64 45 45-51 2 DN50 77.5 63 57-63 Data Sheet For Threaded Fitting with Ferrule:Threaded Pipe Size Ferrule Size Fits Tri-clamp 1/2" DN15 50.5MM 1.5" 3/4" DN20 50.5MM 1.5" 1" DN25 50.5MM 1.5" 1-1/4" DN32 50.5MM 1.5" 1-1/2" DN40 64MM 2" 2" DN50 77MM 2.5" We ship worldwide by EMS,DHL,UPS,FedEx,TNT,China Post,E-packet and so on. We are unable to control the delivery time because it is processed by Third-party service, but if the parcel has not arrive within expected time,please contact us,we will help you to track it and give you a satisfied reply. 1)We guarantee to ship out within 48 hours after payment confirmation(except Holiday). 2)If there is any unexpected situation(for example,if the order can not ship out within 48 hours), we will contact you as soon as possible, and follow up closely to ship your order soon.
